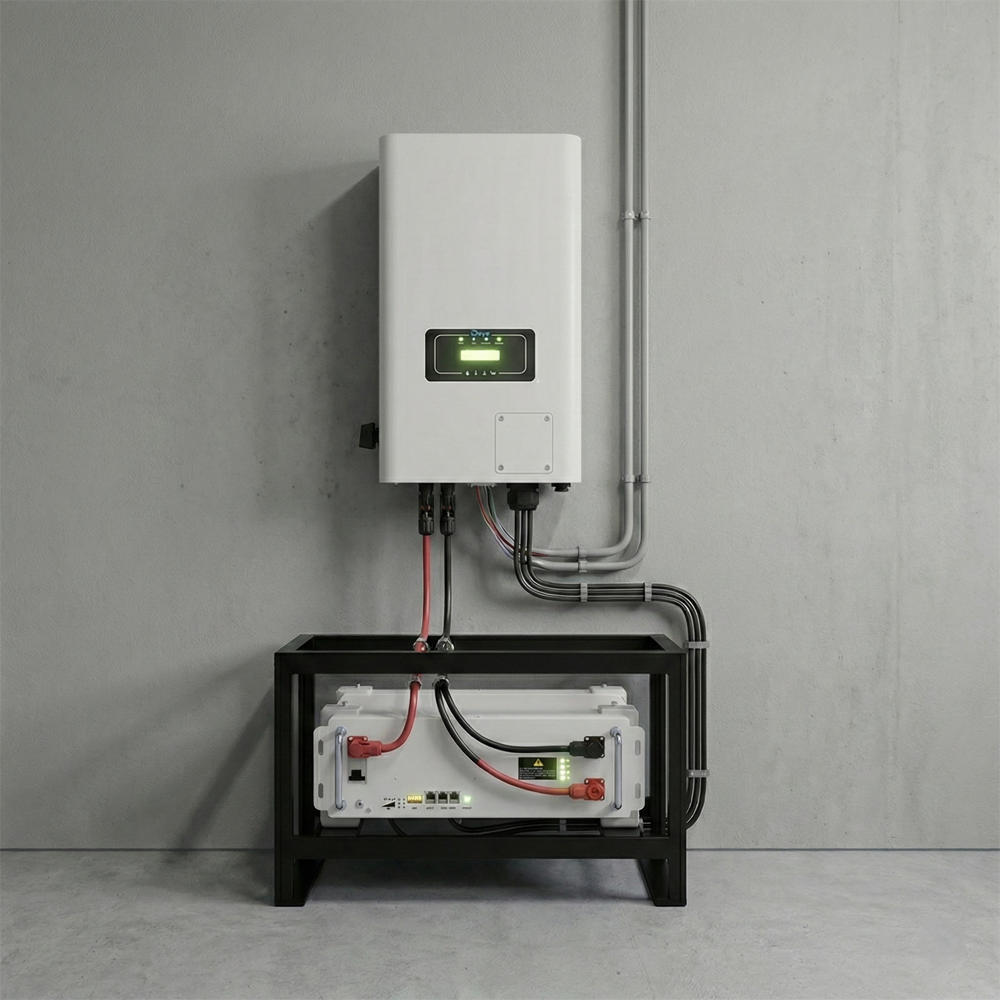

Send Inquiry5kW Hybrid Inverter + 5kWh BESS
Price 165000.0 INR/ Piece
MOQ : 1 Piece
5kW Hybrid Inverter + 5kWh BESS Specification
- Maintenance Type
- Low maintenance
- Efficiency
- >97%
- Input Voltage
- 160V-600V DC
- Features
- Smart monitoring, Wi-Fi/GPRS connectivity, PV/AC input, Remote operation, Advanced BMS Security
- Product Type
- Hybrid Inverter with Battery Energy Storage System (BESS)
- Material
- Metal casing, advanced lithium iron phosphate (LiFePO4) battery cells, electronic components
- Number of Cells
- 16 cells (LiFePO4)
- Power
- 5kW
- Operating Temperature
- -10C to +50C
- Max Voltage
- 58.4V DC (Battery Pack)
- Max System Voltage
- 600V DC
- Output Voltage
- 230V AC Single Phase (optional: 400V AC 3-phase)
- Cable Length
- Customizable / Not specified
- Switch Mode
- Automatic / Manual
- Size
- Standard (refer dimension)
- Dimension (L*W*H)
- 600mm x 500mm x 250mm
- Color
- White / Grey
- Weight
- 62 kg
- Application
- Residential, Commercial, Small Business, Backup Power
- Type Of Technology
- Hybrid (On-grid/Off-grid with Integrated BESS)
- Installation Type
- Floor / Wall Mounted
- Communication Ports
- RS485, CAN, Wi-Fi
- Battery Type
- Lithium Iron Phosphate (LiFePO4)
- Display
- LCD/LED digital display
- Grid Type
- On-Grid, Off-Grid, Hybrid
- Cycle Life
- >6000 cycles @80% DOD
- MPPT Range
- 120V-550V DC
- Battery Capacity
- 5kWh usable
- Rated Output Current
- 21.8A
- Protection
- Overload, short-circuit, over-temperature, surge, anti-islanding
- Scalability
- Modular expansion supported
- Inverter Type
- Pure Sine Wave
- Noise Level
- <50 dB
About 5kW Hybrid Inverter + 5kWh BESS
Upgrade your home's resilience with smart energy storage. This efficient inverter and BESS combo reliably powers 1 AC and 1 refrigerator, plus essential lights and fans. Offering up to 3 hours of seamless backup during blackouts, it ensures your environment stays climate-controlled and your food stays fresh.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Residential Combos Category

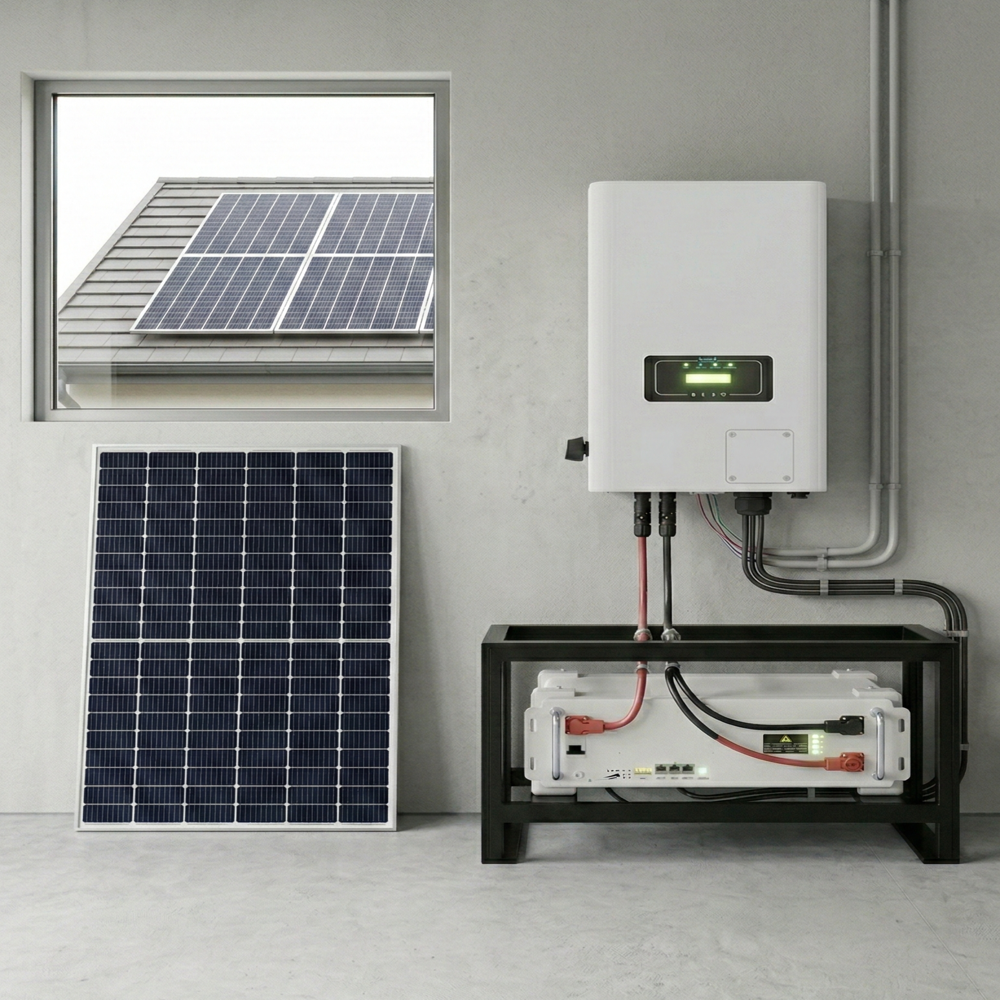

5 kWp Solar + 5 kWh BESS Combo
Price 335000.0 INR / Set
Minimum Order Quantity : 1 Piece
Efficiency : 1820% (solar module), >90% (battery roundtrip)
Size : Customizable
Maintenance Type : Low/Minimal
Max Voltage : DC 1000 V (Solar Side)
10 kWp Solar + 10 kWh BESS Combo
Price 684999.0 INR / Set
Minimum Order Quantity : 1 Piece
Efficiency : Inverter: >97.5%, Solar Module: up to 20.5%
Size : Standard Modular Components
Maintenance Type : Low, Periodic Cleaning & System Check
Max Voltage : 600V DC (PV Array); 250V (Battery)

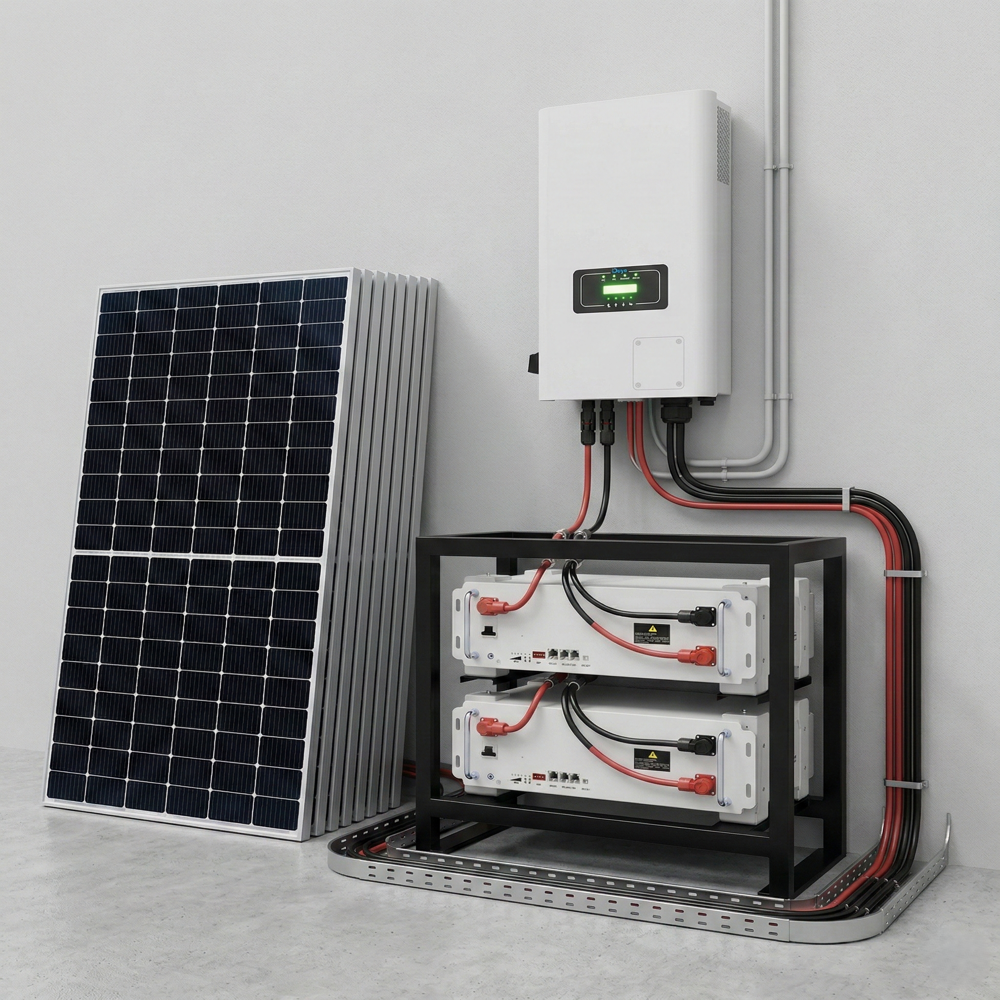

10 kW Hybrid Inverter + 10 kWh BESS
