DCR Topcon 550W

Get a Price/Quote

Product Details:

Features PID Resistant, High Efficiency, Salt Mist, and Ammonia Resistant
Maintenance Type Low Maintenance
Efficiency 20.8%
Input Voltage 41.6V
Product Type Solar Module (DCR)
Material Polycrystalline Silicon
Number of Cells 144 (6x24)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

DCR Topcon 550W Price And Quantity

Minimum Order Quantity 10 Piece

DCR Topcon 550W Product Specifications

Cable Length 1.2 meter
Color Blue with Silver Frame
Operating Temperature -40C to 85C
Maintenance Type Low Maintenance
Application Solar Power Plants, Rooftop, Commercial & Industrial
Max System Voltage 1500V DC
Product Type Solar Module (DCR)
Output Voltage 41.6V
Max Voltage 49.5V
Size 2279 x 1134 mm
Power 550W
Features PID Resistant, High Efficiency, Salt Mist, and Ammonia Resistant
Dimension (L*W*H) 2279 x 1134 x 35 mm
Switch Mode MC4 Compatible Connectors
Efficiency 20.8%
Installation Type Ground Mounted/Rooftop
Number of Cells 144 (6x24)
Weight 28.6 kg
Type Of Technology BIS Approved DCR Technology
Input Voltage 41.6V
Material Polycrystalline Silicon

Wind Load Capacity 2400 Pa
Cell Size 182 x 91 mm
Front Cover High Transmission Low Iron Tempered Glass
Snow Load Capacity 5400 Pa
Fire Rating Class C
Frame Material Anodized Aluminium Alloy
Glass Type 3.2mm Tempered Glass with AR Coating
Junction Box Protection IP68 Rated
Bypass Diodes 3 Units
Backsheet Weather Resistant Polymer

DCR Topcon 550W Trade Information

Supply Ability 1000 Piece Per Month
Delivery Time 7 Days

Product Description

Buy the celebrated DCR Topcon 550W module-India's top-rated pick for optimal solar performance. Crafted with immaculate anodized aluminium alloy frames and weather-resistant polymer backsheet, this lofty panel thrives in diverse climates. It boasts IP68-rated junction box protection, advanced AR-coated tempered glass, and an impressive efficiency of 20.8%. Three bypass diodes and MC4-compatible connectors ensure seamless operation. Pick yours for rooftop or commercial installations-enjoy robust power (550W), PID and salt mist resistance, low maintenance, and BIS-approved DCR technology. Secure optimum energy for commercial, industrial, or residential solar power plants.

Applications and Features of DCR Topcon 550W

The DCR Topcon 550W, celebrated for its robust build, is ideal for solar power plants, rooftops, and commercial or industrial setups. Its advanced polycrystalline silicon technology, immaculate frame, and high-efficiency output make it a preferred choice. Key features include PID resistance, salt mist and ammonia resilience, and seamless performance under wind (2400 Pa) and snow (5400 Pa) pressure. Application media spans ground-mounted and rooftop installations, fitting diverse energy requirements with excellence and dependability.

Domestic Market Reach and Secure Shipping

The DCR Topcon 550W enjoys a premium presence in India's main domestic markets, reaching clients through trusted distributors, suppliers, and traders. With secure shipping via premium FOB ports, customers can expect their orders to arrive safely and efficiently. Sample availability enables decision-makers to evaluate the product ahead of major investments, ensuring a seamless and dependable arrival every time. Trust in DCR Topcon 550W for premium solar experience and best-in-class support throughout your purchase journey.

FAQ's of DCR Topcon 550W:

Q: How does the DCR Topcon 550W panel benefit commercial and industrial solar projects?

A: The DCR Topcon 550W delivers high efficiency (20.8%) and robust performance even in challenging climates, making it ideal for commercial and industrial solar projects. Its top-rated PID resistance, weatherproof build, and high transmission glass ensure consistent energy output, supporting reliable power generation and sustainability goals.

Q: What features make the DCR Topcon 550W suitable for harsh weather conditions?

A: The panel is engineered with an anodized aluminium alloy frame, weather-resistant polymer backsheet, AR-coated tempered glass, and IP68 junction box protection. These elements, combined with a wind load capacity of 2400 Pa and snow load capacity of 5400 Pa, provide durability in harsh storms and snow-prone environments.

Q: Where can the DCR Topcon 550W be installed?

A: The DCR Topcon 550W is versatile and can be installed on rooftops, ground-mounted systems, solar power plants, and various commercial or industrial locations. Its design supports both domestic and large-scale renewable projects, accommodating diverse environmental and space requirements.

Q: How is the shipping and delivery process managed for the DCR Topcon 550W?

A: Secure shipping is ensured through premium FOB ports. Orders are packaged carefully for safe transit and reliable arrival. Sample units are also available, allowing customers to assess the product before bulk purchases, ensuring confidence in every shipment.

Q: What are the main application media and areas for this module?

A: The DCR Topcon 550W is celebrated for its performance in rooftop, commercial, and industrial solar applications. Its excellent efficiency and robust build make it well-suited for both ground-mounted and rooftop installations, providing reliable power for a range of energy needs.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Solar Panels' category

Non DCR Bifacial 595W Minimum Order Quantity : 10 Switch Mode : Other, Automatic Efficiency : 21.2% Output Voltage : 51.90V Dimension (L*W*H) : 2274 mm x 1134 mm x 35 mm Features : Bifacial power generation, High output, PID resistant, Excellent low light performance Size : 2274 mm x 1134 mm Power : 595W Max Voltage : 51.90V Material : Polycrystalline Silicon, Glass, Aluminum Frame Weight : 32.2 kg Number of Cells : 156 (HalfCut cells) Installation Type : Other, Ground Mount / Rooftop Type Of Technology : Other, Bifacial technology, HalfCut Cell Color : Black/Silver Operating Temperature : 40C to +85C Cable Length : 1200 mm Max System Voltage : 1500V DC Product Type : Other, Non DCR Bifacial Solar Module Maintenance Type : Low maintenance Input Voltage : 51.90V

Send Inquiry

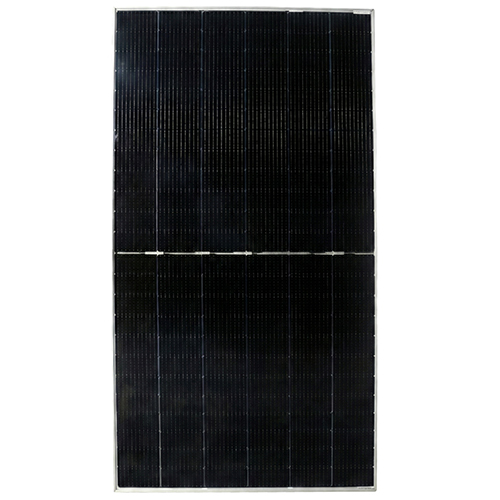

DCR Bifacial 550W Minimum Order Quantity : 10 Switch Mode : Other, Automatic Efficiency : 21.29% Output Voltage : 40.63V Dimension (L*W*H) : 2270mm x 1134mm x 35mm Features : DCR Compliant, PID Resistance, Superior Low Light Performance, Double Glass, High Mechanical Strength Size : 2270mm x 1134mm Power : 550W Max Voltage : 49.5V Material : Polycrystalline Silicon Weight : 33 kg Number of Cells : 144 (2 x 72) Installation Type : Other, Ground Mounted / Rooftop Type Of Technology : Other, Bifacial Color : Blue Operating Temperature : 40C to 85C Cable Length : 1200mm Max System Voltage : 1500V DC Product Type : Other, DCR Bifacial Solar Panel Maintenance Type : Low Maintenance Input Voltage : 1500V DC

Send Inquiry

Non DCR Topcon 615W Minimum Order Quantity : 10 Switch Mode : Other, Automatic Efficiency : 21.05% Output Voltage : 36.5V Dimension (L*W*H) : 2279 mm x 1134 mm x 35 mm Features : High Efficiency, PID Resistant, Weather Proof, High Output in Low Light Size : 2279 mm x 1134 mm Power : 615W Max Voltage : 46.1V Material : Polycrystalline Silicon Weight : 32.5 kg Number of Cells : 120 (6x20) Installation Type : Other, Ground Mounted/Rooftop Type Of Technology : Polycrystalline Color : Blue/Black Operating Temperature : 40C to +85C Cable Length : 1 Meter Max System Voltage : 1500V DC Product Type : Other, Non DCR Solar Photovoltaic Module Maintenance Type : Low Maintenance Input Voltage : 1500V DC

Send Inquiry

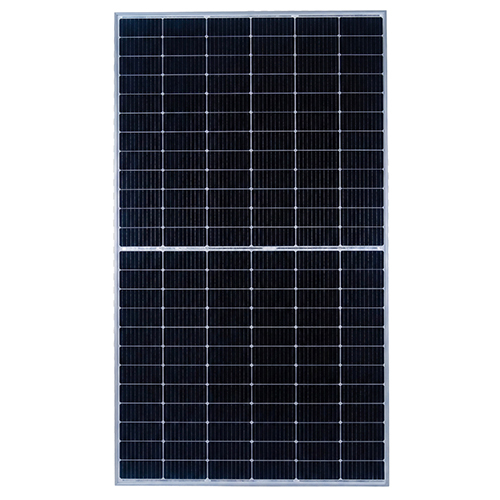

Non DCR Topcon 595W Minimum Order Quantity : 10 Switch Mode : Other, No Efficiency : Up to 22.7% Output Voltage : Up to 49.10 V Dimension (L*W*H) : 2278 x 1134 x 30 mm Features : PID Resistance, Bifacial Technology, High Efficiency, Low LID, Durable in Harsh Weather Size : Large Format Power : 595 Watt Max Voltage : 50 V Material : Annealed Glass, Anodized Aluminium Alloy, TPT/Backsheet, EVA Encapsulant, Silicon Cells Weight : Approx. 27 Kg Number of Cells : 144 (Half Cut) Installation Type : Other, Ground Mounted/Rooftop Type Of Technology : Other, Topcon (NType) Color : Black Frame with Silver/White Backsheet Operating Temperature : 40C ~ +85C Cable Length : 1.2 Meter Max System Voltage : 1500 V DC Product Type : Other, Non DCR Solar Module (Topcon 595W) Maintenance Type : Low
