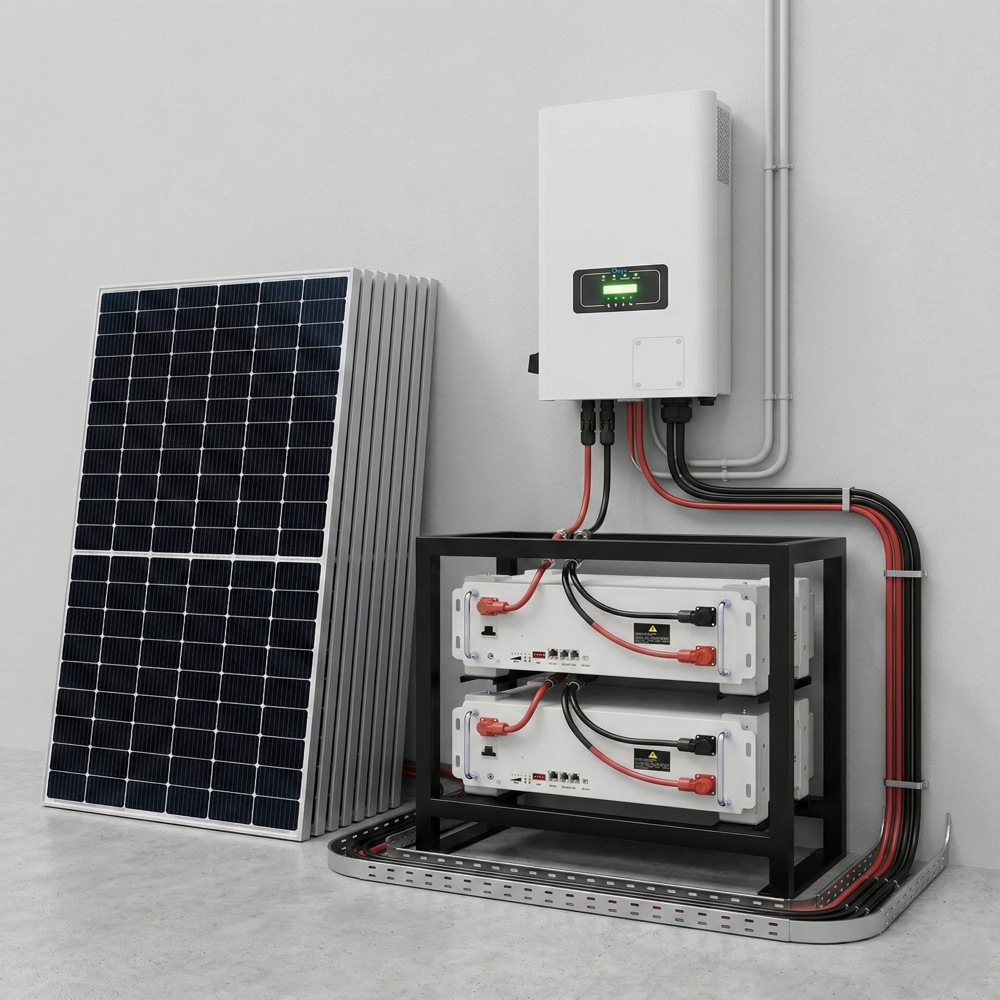

10 kWp Solar + 10 kWh BESS Combo

Name: 10 kWp Solar + 10 kWh BESS Combo
Brand: SURIN INTERNATIONAL PVT. LTD.
Price: 684999.0 INR
Availability: InStock

Price 684999.0 INR/ Set

Get a Price/Quote

MOQ : 1 Piece

10 kWp Solar + 10 kWh BESS Combo Specification

Maintenance Type
Low, Periodic Cleaning & System Check

Features
On/Off Grid Operation, Wi-Fi/RS485 Monitoring, Expandable, Battery Management System, MPPT, Surge Protection

Input Voltage
200V-850V DC (PV Input)

Efficiency
Inverter: >97.5%, Solar Module: up to 20.5%

Product Type
10kW Hybrid Inverter + 10kWh BESS + 10kWp Solar System

Material
Aluminum Alloy, Polycrystalline/Monocrystalline Silicon, Steel, Lithium Iron Phosphate (LiFePO4)

Number of Cells
~27-30 per panel, Array total depends on configuration

Power
10kW (Inverter), 10kWh (Battery ESS), 10kWp (Solar Array)

Operating Temperature
-20C to 60C

Max Voltage
600V DC (PV Array); 250V (Battery)

Max System Voltage
1000V DC

Output Voltage
230V/400V AC (Single/Three Phase)

Cable Length
20 meters (customizable)

Switch Mode
Automatic/Manual Switch Over

Size
Standard Modular Components

Dimension (L*W*H)
Solar Array: 7m x 2m; Inverter: 400mm x 600mm x 150mm; Battery: 600mm x 600mm x 1200mm

Color
White / Black / Blue (customizable)

Weight
Inverter: 35kg; Battery: 110kg; Solar Panel: 18kg per panel

Type Of Technology
Hybrid Inverter, LiFePO4 Battery, Mono/Polycrystalline PV Modules

Installation Type
Ground-mount, Rooftop, Wall Mount (Inverter, BESS)

Communication Interface
RS485, Wi-Fi, CAN

Battery Cycle Life
6000+ cycles at 80% DOD

Expandability
Modular, Expandable up to 30kWh Battery and 30kWp Solar

Noise Level
<45 dB (inverter)

No. of MPPTs
2

Surge Protection Class
Type II on both DC & AC sides

PV Maximum Input Current
13A per MPPT

Cooling Method
Smart Forced Air Cooling

Self-Consumption (Night, Inverter)
2W

Display Type
LCD Display with Remote Monitoring

Remote Monitoring
Mobile App/Web Portal (iOS/Android)

THD (Total Harmonic Distortion)
<3%

Grid Compatibility
Single Phase/Three Phase Grid Support

Maximum PV Input Power
12kWp

Mounting Structure Material
Galvanized Steel/Aluminum

Rated Output Frequency
50Hz/60Hz (auto selectable)

Protection Features
Over-voltage, Over-current, Short Circuit, Reverse Polarity, Over-temperature

Humidity
0-95% RH (non-condensing)

Power Factor
>0.99 (adjustable)

10 kWp Solar + 10 kWh BESS Combo Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
14 Days

About 10 kWp Solar + 10 kWh BESS Combo

Secure your home's energy future with this robust solar and storage solution. Built for medium-sized households, this system effortlessly powers up to 2 ACs and 1 refrigerator, in addition to standard lights and fans. Experience total peace of mind with 3 hours of reliable backup during outages, ensuring your family stays comfortable day and night.
